| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-550 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Flow Rate 50lpm Air Particle Counter | Size Channel: | 0.5, 1, 3, 5, 10,25 μm |
|---|---|---|---|
| Flow Rate: | 100LPM | Light Source: | Laser Diode |
| High Light: | Y09-550 Air Particle Counter,DC16.8V Air Particle Counter,Laser Diode air Particle Counter |
||

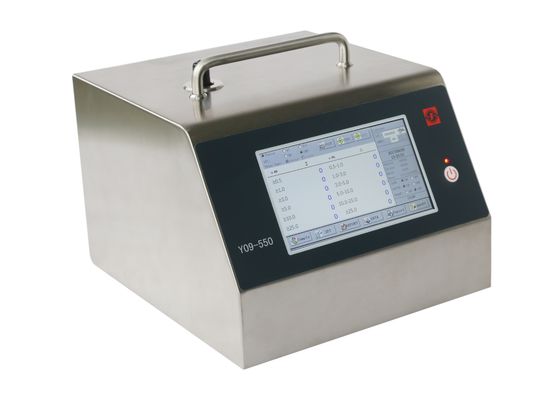

Y09-550 50LPM-Airborne Particle Counter
description of Flow Rate 50lpm Air Particle Counter
Y09-550 airborne particle counter (hereinafter referred to as the instrument) is used to measure the size and quantity of dust particles per unit volume of air, and can directly verify ISO Class 5-8 (EU GMP Grade A-D) clean environments.
The instrument uses a laser diode light source, with touch screen (LCD) display, having such advantages like reasonable structure, high accuracy large flow rate, short sampling time, simple and convenient operation. The testing data can be directly stored in the U disk without computer acquisition, also it is micro computer controlled, can print sampling results by miniature built-in thermal printer. The instrument is widely used in electronic, optical, chemical, food, cosmetics, pharmaceuticals, biological products, aviation and aerospace etc.
l Simultaneously display of up to six particle size
l 20000-record data storage memory
l Meet the requirements of ISO14644-1:2015
Specification of Flow Rate 50lpm Air Particle Counter
| Model | Y09-550 |
| Outside Dim | 268×192×292(mm3) |
| Display | 7inch Color Screen |
| Weight | 8.4kg |
| Max.Consumption | 80W |
| Power Source | DC16.8V |
| Size Channels | 0.5, 1, 3, 5, 10, 25μm |
| Flow Rate | 50L/min |
| Sample Time | 6~999999s(Selectable) |
| Zero Count | ≤10min |
| Hold Time | 0-9999s |
| Delay Time | 5-999s |
| Printer | Built-in Thermal Printer |
| Data Storage | 20000 Samples/300Samples of UCL(With PC Software) |
| Maximum Rated Particle Concentration | 35000 particles/L |
| Operating Time | More than 5.5 hours |
| Environmental | Temperature:10~35℃; Humidity:20%~75%RH; Atmosphere Pressure:86~106Kpa |
| Material | SUS316L Stainless Steel |
| Class | ISO14644-1:2015/GMP:2015 |
Suzhou Sujing Automation Instrument Equipment Co., Ltd. (herein after referred to as Sujing Instrument) is boasting the largest market share in the particle measurement field in China, with complete integration of scientific research, development and production.
Sujing Instrument is one subsidiary company of Sujing Group.(Sujing Group has 11 subsidiary companies)
Sujing brand has been granted the honor of "China Famous Brand" since 1983. Sujing Group has been keeping the first place among competitors in the same industry for 35 years in a row.
The mission of Sujing Instrument is to provide products and services accociated with particle measurement and monitoring, which are application driven.
Sujing instrument is an ISO 9001:2015 Registered Company
1. Research
2.Material
3.Produce
4.Calibration
5.Testing
5.Packing
