| Place of Origin: | China |
|---|---|
| Brand Name: | SUJING |
| Model Number: | LE100 |
| Minimum Order Quantity: | 1 |
| Price: | Negotiable |
| Packaging Details: | Wooden Case |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | LE100 Liquid Particle Counter Filtration Efficiency Detection | Display: | 7inch LCD Color Touch Screen |
|---|---|---|---|
| Syringe Specifications: | 1ml, 5ml, 10ml*, 25ml | Maximum Detection Concentration: | 10000 Particles/ml |
| Warranty Time: | 1 Year | Sensor Type: | Laser Block Sensor |

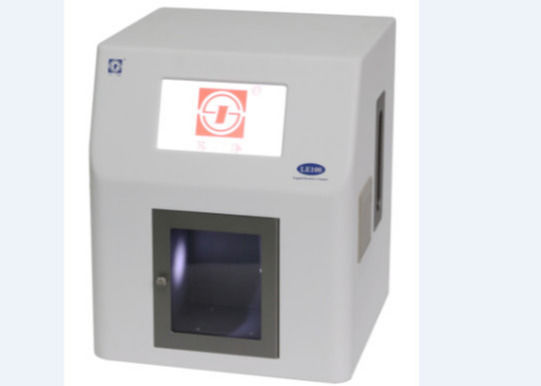

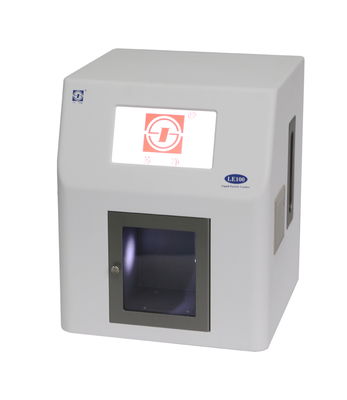

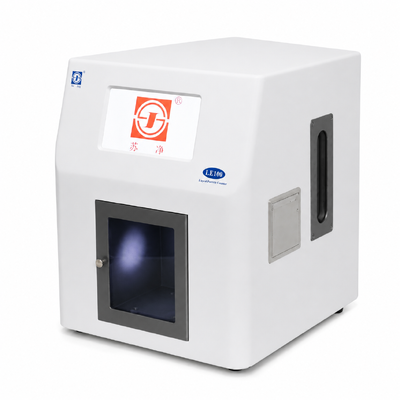

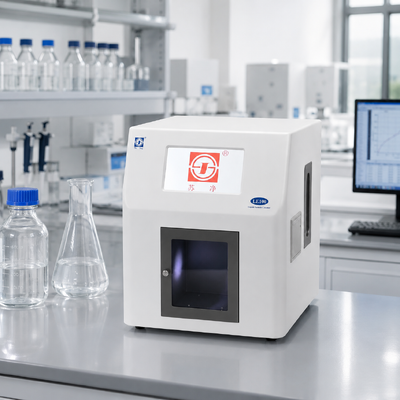

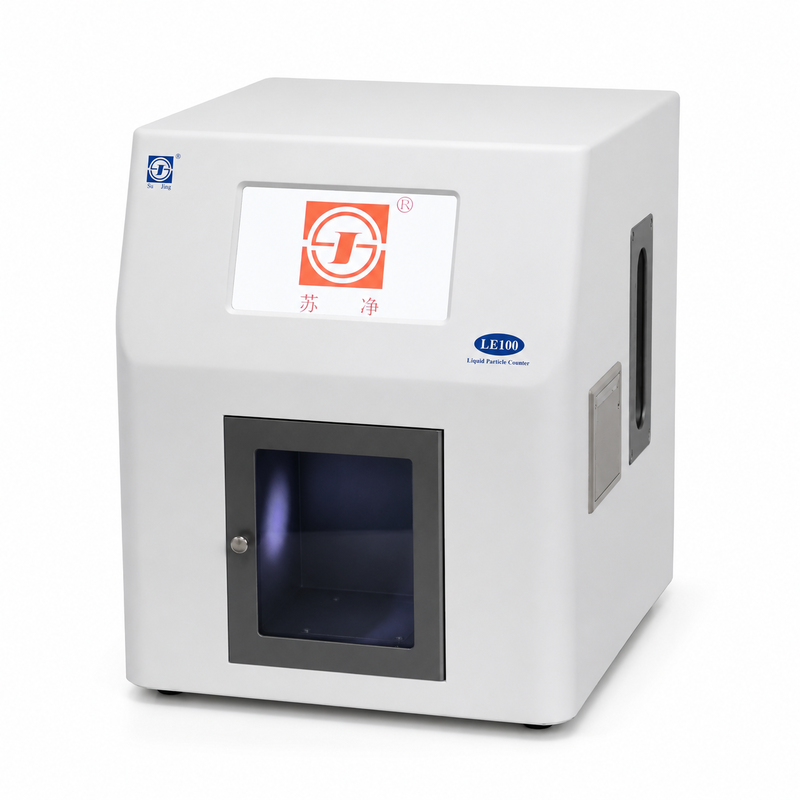

LE100 Liquid Particle Counter Filtration Efficiency Detection
| Technical parameters | liquid particle counter |
| Particle size range | 2-400 μm |
| Particle size channel | 24 |
| Maximum detection concentration | 10000 particles/ml |
| Accuracy | ±10% |
| Repeatability | RSD<2% (particles>1000 per ml, 5ml sample) |
| Resolution | <10% (U.S.P, ISO 21501) |
| Syringe specifications | 1ml, 5ml, 10ml*, 25ml |
| Sampling speed | 20 ml/min* |
| Sample volume accuracy | ±1% |
| Minimum sampling volume | 0.2ml** |
| Sensor material | 316 stainless steel, quartz glass, PTFE, NBR |
| Power supply | AC 100~240V, 50/60HZ |
| Mixing method | Magnetic stirrer (speed adjustable) |
| Data output | RS232 port; USB; built-in thermal printer |
| Display output | 7 inch LCD color touch screen |
| Size | 320(L)×309(W)×394(H) mm |
| Weight | 11.0 kg |
| Operating environment | Temperature 10-40 ℃; RH 0 ~ 95% non-condensing |
| Software system | LE-Assistant (optional) |
| |
| 8.Exhaust fan | 1. Display |
| 9.heat emission hole | 2. Door of sample chamber |
| 10. Power switch | 3. Thermal printer |
| 11. AC power outlet and fuse | 4. Syringe |
| 12. R232 port | 5. Sample tube |
| 13. Sample drain | 6. LED chamber light |
| 14. USB port | 7. Stirrer |
Components of liquid particle counter
| The instrument ×1 | Power cord ×1 |
| Fuse ×1 | Detecting cup ×1 |
| Stir rod ×1 | Operation manual ×1 |
| Drain line tube ×1 | Testing report ×1 |
| Touch pen ×1 | Quality certificate ×1 |
| Printing paper ×1 | Warranty card ×1 |
| Packing list ×1 |
Application of liquid particle counter
Injections testing under CP, USP, EP, JP and other standardsCleanliness detecting of medical equipment / partsFiltration efficiency detectionLaboratory water testing
