| Place of Origin: | China |
|---|---|
| Brand Name: | Sujing |
| Model Number: | Y09-3016HW |
| Minimum Order Quantity: | 1 |
| Price: | EXWUSD4000/unit |
| Packaging Details: | Airborne Particle Counters, including portables, handhelds, and remotes, are designed to meet the rigid requirements for clean room applications.Airborne Particle Counters comply with the stringent requirements set forth in ISO 21501-4.The recognized stand |
| Delivery Time: | 5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 800/per month |
| Name: | Handheld Particle Counter In Cleanroom Of Pharma Factory 0.1cfm | Size Channel: | 0.3, 0.5, 1, 3, 5, 10 μm |
|---|---|---|---|
| Display: | 4.3inch Touch Screen | Flow Rate: | 28.3LPM |
| Warranty Time: | 1 Year | Weight: | 1kg |
| High Light: | 4.3 Inch Touch Screen Particle Counter,4.3'' Touch Screen Handheld Particle Counter,28.3LPM Handheld Particle Counter |
||

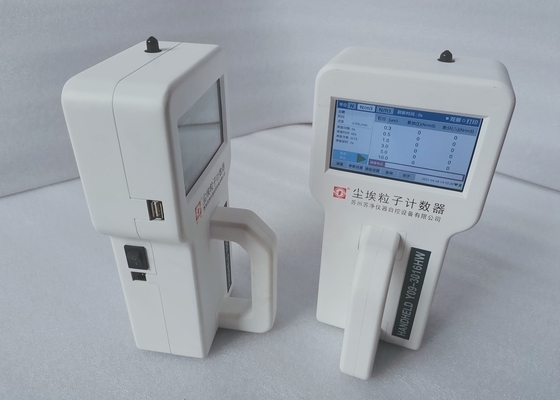

Handheld Particle Counter In Cleanroom Of Pharma Factory 0.1cfm
Particle Counters, including portables, handhelds, and remotes, are designed to meet the rigid requirements for clean room applications. Particle Counters comply with the stringent requirements set forth in ISO 21501-4.The recognized standard for particle measurements. Backed with long-standing reputation for high quality and accuracy, Airborne Particle Counters provide the best measurement and data to help keep your processes in control.
The specification of Y09-3016HW air particle counter
| Outside Dim | 245*128*66 mm3 |
| Display | 4.3inch Touch Screen |
| Weight | 1kg |
| Power Source | DC16.8V |
| Size Channels | 0.3, 0.5, 1, 3, 5, 10 μm |
| Flow Rate | 2.83L/min |
| Sample Time | 1s-99h |
| Cycles | 0-99 |
| Hold Time | 0-999sec |
| Delay Time | 0-99sec |
| Light source | Laser Diode |
| Zero Court | <=10min |
| Class | ISO14644-1:2015/GMP:2015 |
| Coincidence Loss | 5%,2000000ps/cf |
| Operating Time | more than 4hours |
| Location Labels | 0-999 |
| Data Storage | 100000 Samples (Wifi) |
| Environmental | 10degrees celsius-40degrees celsius ; Humidity: 20%-90% RH ;Atmosphere Pressure 86Kpa-106Kpa |
The Feature of Y09-3016HW air particle counter
1. Simultaneously sizes and counts particles in six fixed channels
2. Size sensitivities with 0.3μm,0.5μm,1μm,3μm,5μm,10μm
3. 0.1CFM(2.83L/min) sample flow rate
4. 4.3 inch color touch screen display
5. External printer optional 6.One year warranty Company Information
