100L/Min Compressed Air Sampler For Microbiology DC16.8V

Basic Information
Place of Origin: China
Brand Name: Sujing
Model Number: FKC-IB
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: The Microbial Air Sampler offers two CPU controlled sampling rates, 28.3 LPM (1 CFM), and 100 LPM, to allow for continuous monitoring of critical processes, or to take quick cubic meter “grab samples”. The sampled air volume is HEPA filtered prior to bein
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 800/per month
Detail Information
Name: Compressed Air Sampler For Microbiology Sampling Flow: 100L/min
The Sampling Port Flow Rate: 0.38 M/s Power: DC16.8V
Warranty Time: 1 Year Environmental: Temperature: 10--35 ℃
High Light:

Microbial Air Sampler 0.38 M/S

,

DC16.8V Compressed Air Sampler For Microbiology

,

100L/min Compressed Air Sampler


Product Description

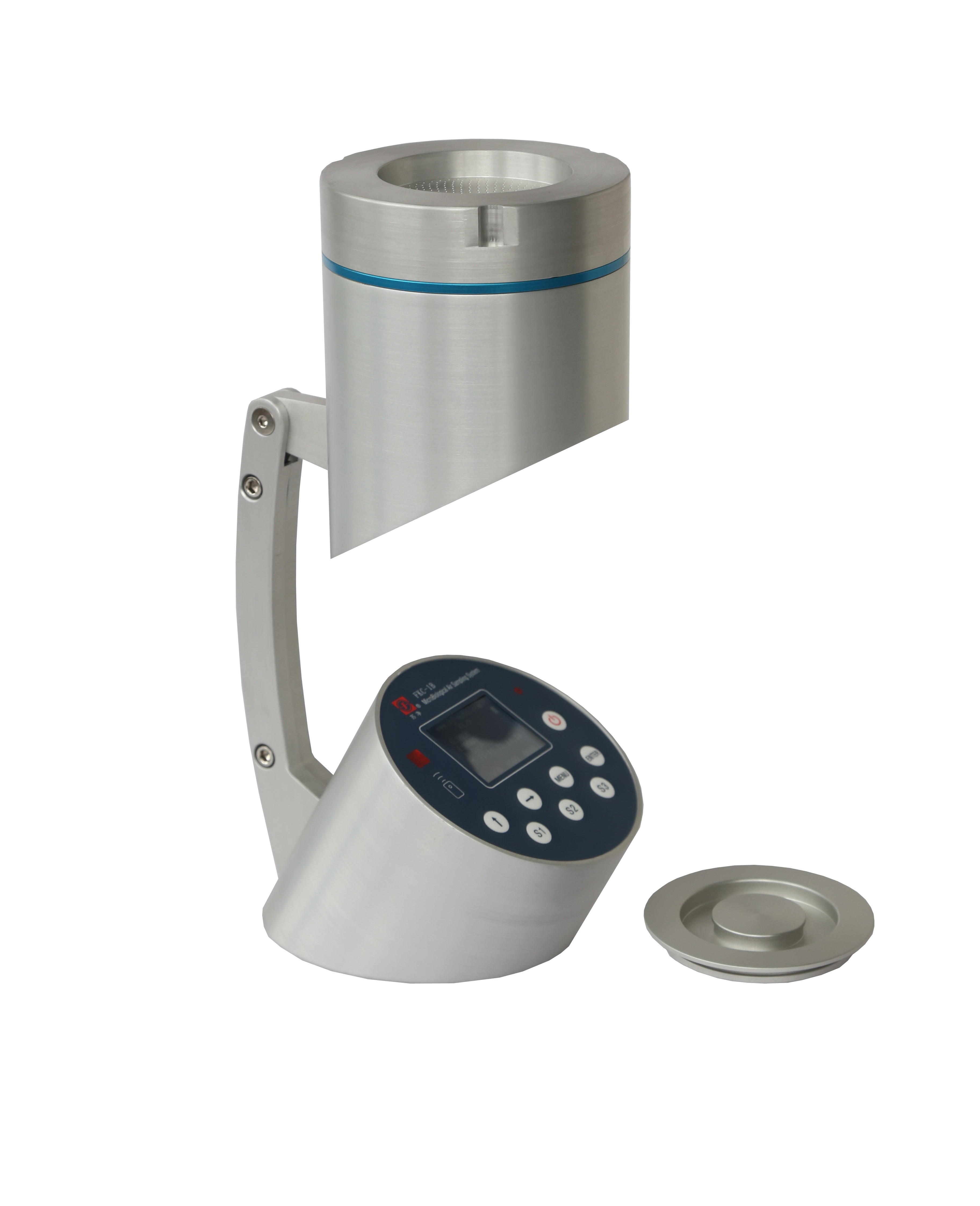

Compressed Air Sampler For Microbiology



The Microbial Air Sampler offers two CPU controlled sampling rates, 28.3 LPM (1 CFM), and 100 LPM, to allow for continuous monitoring of critical processes, or to take quick cubic meter “grab samples”. The sampled air volume is HEPA filtered prior to being exhausted at the unit, or remotely through optional attachments. The unit may be operated directly via its user-friendly LCD/Touch Screen interface, or through your Network (LAN) via PC based software, which allows for full operable control of all units connected to your Network. An Infrared remote is included, which allows for Start/Stop/Pause/Resume functionality of 1-5 units. The P100’s CPU allows for the creation and storage (if desired) of unique sampling plans, including Delay/Test/Hold functionality, while offering Sample Site Description and User ID entry and maintenance. The P100 allows for capture and storage of key parameters from 500 sample runs, offering unique CFR Part 11 regulatory compliant data control with data run review/deletion capabilities controlled by a system administrator. Data may be output/viewed through on optional custom label printer, USB stick, or via optional PC based software.



Features of microbial air sampler

  •  Sampling inlet head adopts SUS316 with high precision machining, up/down diameters of microholes in thehead are same to ensure best air flow and good bacteria capture effect.
  •  Optional printer to compare data with culture dish on site

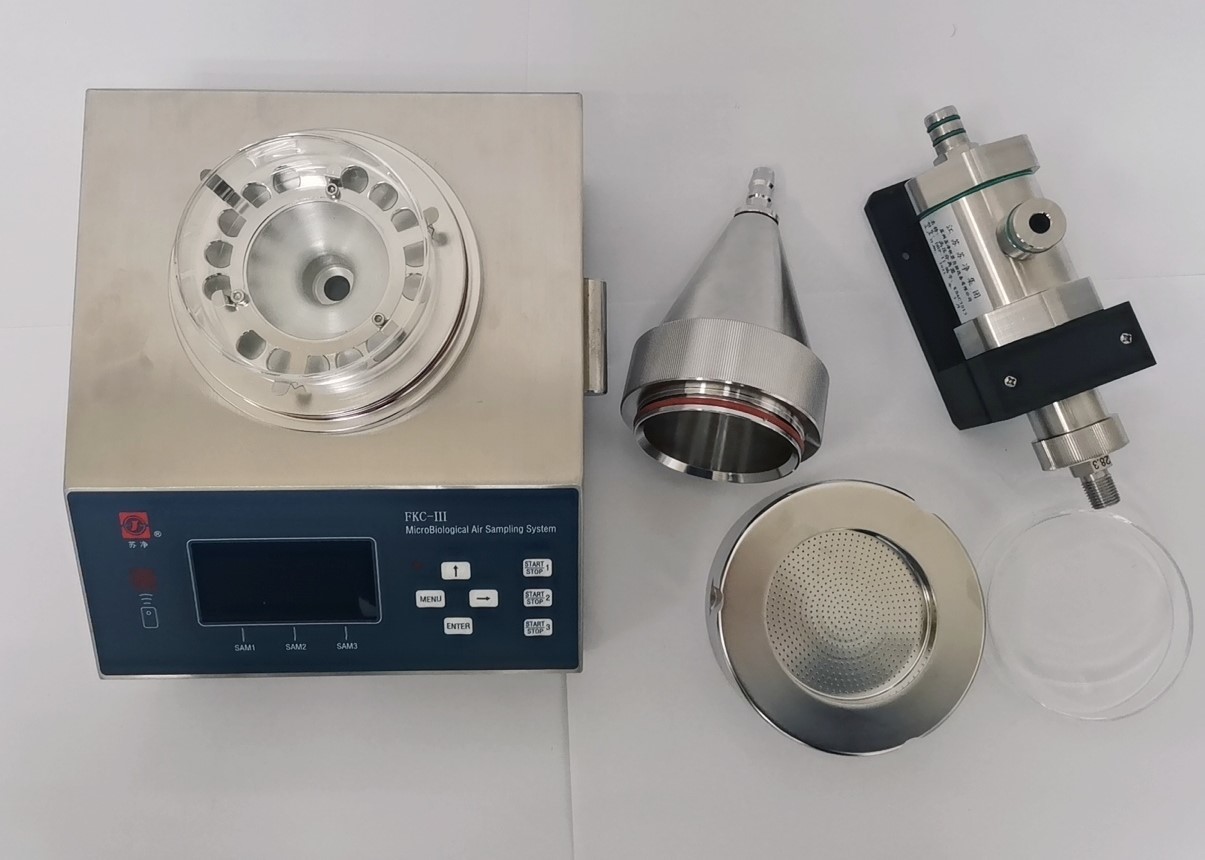

  •  Optional compressed air sampling accessory to measure no. of planktonic bacteria in compressed air.
  •  Convenient operation: easy to change culture dish (φ90*15mm) by removing sampling inlet head.
  • Optional wireless controller
  • Complete after-sales service: warranty for 1 year, free-charge for flow rate calibration, free-charge for software updating

Specification of microbial air sampler



Sampling flow 100L / min
The sampling port flow rate 0.38 m/s
sampling volume 0.001-9.999m³
Standard universal Petri dish Φ90 * 15
Power DC16.8V
Dimensions Φ120*325
Weight 3kg
Environmental Temperature: 10--35 ; Relative humidity: 10--90% RH; Atmospheric Pressure: 80-110kPa
Maximum dust concentration 100 000 000 / m³@0.5μm or 0.2mg / m³



Environmental parameters of microbial air sampler
1. In order to ensure production quality and prevent pollution of the production environment, production area space must meet specified environmental standards.
2. The particles and microorganisms in the area is the main control object, and also need to deal with the environmental temperature, humidity, fresh air volume, differential pressure, light, sound level, and other parameters.
3. There are 4 cleanliness classes of pharmaceutical manufacturing cleanrooms and clean zones.



Accessories of microbial air sampler

1. AC adapter

2. Remote control

3. Petri dish (Φ90×12) 2pcs





100L/Min Compressed Air Sampler For Microbiology DC16.8V 0
